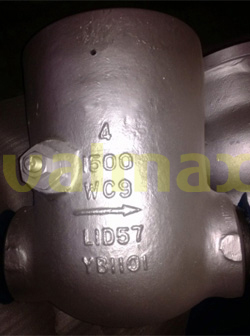

Check Valve, 1500 LB, 4 Inch, ASME/ANSI B16.5, BS1868
Short Description
 Model No.: VM 13 CV 04    Clicks: 2995
China Check Valve manufacturer Valmax supplies Check Valve, Body/Cap made of ASTM A216 WC9, with Face to Face dimension 546 mm, BS 1868 Valve standard.
Request a quoteShare
Keywords: Check Valves .
Previous: Check Valve, 900 LB, RF, 24 Inch, Pressure Seal Cover
Next: Check Valve, 900 LB, 4 Inch, ASME/ANSI B16.5, BS 1868

Check Valve, 1500 LB, 4 Inch, ASME/ANSI B16.5, BS1868 Key Specifications / Features


Body/Cap: ASTM A216 WC9.
Disc: ASTM A216 WC9+13CR.
Seat: ASTM A182-F22+13CR.
Face to face dimension: 546 mm.
Valve standard: BS 1868.
Flange standard: ASME/ANSI B16.5.
Sealing pressure test: 275 BAR.
Shell pressure test: 375 BAR.
