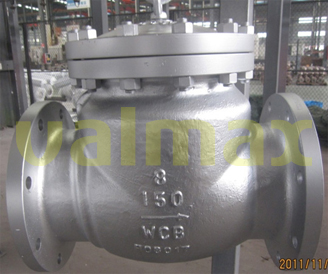

Check Valve, 8 Inch, 150 LB, RF, Bolted Cover, BS 1868

Valmax > Valves > Check Valves > Check Valve, 8 Inch, 150 LB, RF, Bolted Cover, BS 1868

Short Description

Model No.: VM 13 CV 08 Clicks: 3461

China Check Valve manufacturer Valmax supplies Check Valve, featured with Face to Face dimension 495 mm, ASME B16.5 Flange standard, BS1868 Valve standard.

Request a quote Share

Keywords: Check Valves .

Previous: Check Valve, 20 Inch, 150 LB, Flange End, Bolted Cap
Next: Check Valve, 14 Inch, 150 LB, RF, Bolted Cover, BS 1868

Check Valve, 8 Inch, 150 LB, RF, Bolted Cover, BS 1868 Key Specifications / Features

Body/Cap: ASTM A216 WCB.

Disc: ASTM A216 WCB+13CR.

Seat: ASTM A105+13CR.

Face to face dimension: 495 mm.

Valve standard: BS 1868.

Flange standard: ASME/ANSI B16.5.

Sealing pressure test: 22 BAR.

Shell pressure test: 30 BAR.

Check Valve, 8 Inch, 150 LB, RF, Bolted Cover, BS 1868

Check Valve, 8 Inch, 150 LB, RF, Bolted Cover, BS 1868 Key Specifications / Features
