Check Valve, 800 LB, 1 Inch, Piston Type, Bolted Cap

Valmax > Valves > Check Valves > Check Valve, 800 LB, 1 Inch, Piston Type, Bolted Cap

Short Description

Model No.: VM 13 CV 10 Clicks: 4084

China Check Valve manufacturer Valmax supplies Check Valve, Body/bonnet, plug, seat made of ASTM A182 F51, featured with API 602, BS 5352 Valve standard.

Request a quote Share

Keywords: Check Valves .

Previous: Check Valve, 14 Inch, 150 LB, RF, Bolted Cover, BS 1868
Next: Check Valve, 1500 LB, 1 Inch, Swing Type, Bolted Cap

Check Valve, 800 LB, 1 Inch, Piston Type, Bolted Cap Key Specifications / Features

Body/Cap: ASTM A182 F51.

Disc: ASTM A182 F51.

Seat: ASTM A182 F51.

Valve standard: API 602, BS 5352.

SW standard: ASME/ANSI B16.25.

Sealing pressure test: 154 BAR.

Shell pressure test: 250 BAR.

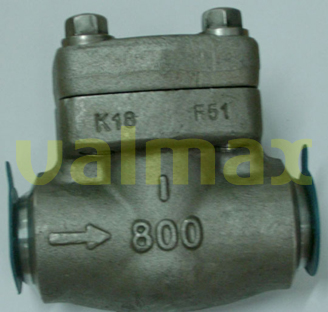

Check Valve, 800 LB, 1 Inch, Piston Type, Bolted Cap

Check Valve, 800 LB, 1 Inch, Piston Type, Bolted Cap Key Specifications / Features
