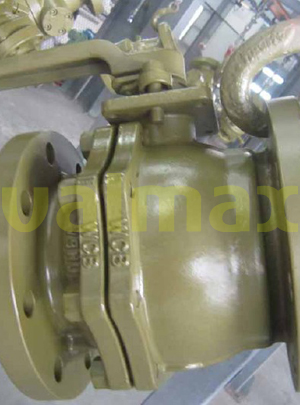

Floating Ball Valve, 300 LB, 4 Inch, ASTM A216 WCB

Valmax > Valves > Ball Valves > Floating Ball Valve, 300 LB, 4 Inch, ASTM A216 WCB

Short Description

Model No.: VM 13 BV 10 Clicks: 3371

China Ball Valve manufacturer Valmax supplies Floating Ball Valve, seat made of PTFE, featured with API 6D Valve standard, 229 mm Face to Face dimension.

Request a quote Share

Keywords: Ball Valves , API 6D Ball Valves .

Previous: Floating Ball Valve,150 LB, 4 Inch, ASTM A216 WCB
Next: Floating Ball Valve, 150 LB, 3/4 Inch, ASME B16.5

Floating Ball Valve, 300 LB, 4 Inch, ASTM A216 WCB Key Specifications / Features

Body/Bonnet: ASTM A216 WCB.

Ball: ASTM A182 F304.

Seat: PTFE.

Stem: ASTM A182 F304.

Face to Face dimentision: 229 mm.

Valve standard: API 6D.

Flange standard: ASME B16.5.

Sealing pressure test: 57 BAR.

Shell pressure test: 78 BAR.

Floating Ball Valve, 300 LB, 4 Inch, ASTM A216 WCB

Floating Ball Valve, 300 LB, 4 Inch, ASTM A216 WCB Key Specifications / Features
