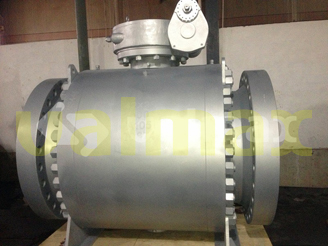

Forging Ball Valve, 600 LB, 42 Inch * 36 Inch

Valmax > Valves > Ball Valves > Forging Ball Valve, 600 LB, 42 Inch * 36 Inch

Short Description

Model No.: VM 13 BV 14 Clicks: 6590

China Valve manufacturer Valmax supplies Forging Ball Valve, seat made of NYLON, featured with 2438 mm Face to Face dimension, ASME B16.5 flange standard.

Request a quote Share

Keywords: Ball Valves , API 6D Ball Valves .

Previous: Forging Ball Valve, 2500 LB, ASME B16.5, API 6D
Next: Forging Ball Valve, 2500 LB, 6 Inch, ASME/ANSI B16.5

Forging Ball Valve, 600 LB, 42 Inch * 36 Inch Key Specifications / Features

Body/Bonnet: ASTM A105.

Ball: ASTM A105+ENP.

Seat: NYLON.

Stem: ASTM A105+ENP.

Face to Face dimentision: 2438 mm.

Valve standard: API 6D.

Flange standard: ASME B16.5.

Sealing pressure test: 112 BAR.

Shell pressure test: 153 BAR.

Forging Ball Valve, 600 LB, 42 Inch * 36 Inch

Forging Ball Valve, 600 LB, 42 Inch * 36 Inch Key Specifications / Features
