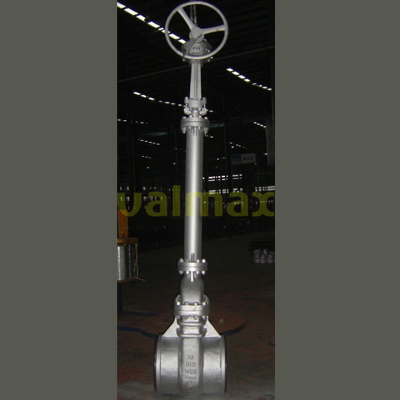

Gate Valve, 150 LB, 18 Inch, RF, OS&Y, ASME/ANSI B16.5

Valmax > Valves > Gate Valves > Gate Valve, 150 LB, 18 Inch, RF, OS&Y, ASME/ANSI B16.5

Short Description

Model No.: VM 13 GV 11 Clicks: 3570

China Gate Valve manufacturer Valmax supplies Gate Valve, Seat made of ASTM A105+STL, featured with 432 mm Face to Face dimension, API 600 Valve standard.

Request a quote Share

Keywords: Gate Valves .

Previous: Gate Valve, 900 LB, 12 Inch, ASME B16.5, Rising Stem
Next: Gate Valve, 600 LB, 2 Inch, RF, Flange End, Rising Stem

Gate Valve, 150 LB, 18 Inch, RF, OS&Y, ASME/ANSI B16.5 Key Specifications / Features

Body/Bonnet: ASTM A216 WCB.

Wedge: ASTM A216 WCB+STL.

Seat: ASTM A105+STL.

Stem: 304SS.

Face to face dimension: 432 mm.

Valve standard: API 600.

Flange standard: ASME/ANSI B16.5.

Sealing pressure test: 22 BAR.

Shell pressure test: 30 BAR.

Gate Valve, 150 LB, 18 Inch, RF, OS&Y, ASME/ANSI B16.5

Gate Valve, 150 LB, 18 Inch, RF, OS&Y, ASME/ANSI B16.5 Key Specifications / Features
