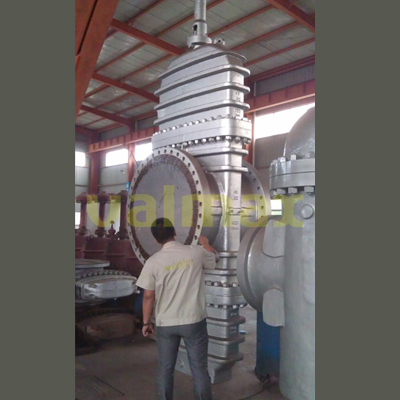

Gate Valve, 150 LB, 42 Inch, Flange End, ASTM A216 WCB
Short Description
 Model No.: VM 13 GV 14    Clicks: 7144
Gate Valve manufacturer Valmax supplies Gate Valve, Body/Bonnet made of ASTM A216 WCB, featured with 965 mm Face to Face dimension, ASME/ANSI B16.5 RF standard.
Request a quoteShare
Keywords: Gate Valves .
Previous: Gate Valve, ASME B16.34, GB12234, API 600, ASME B16.5
Next: Gate Valve, 1500 LB, 1-1/2 Inch, ASME/ANSI B16.5, OS&Y

Gate Valve, 150 LB, 42 Inch, Flange End, ASTM A216 WCB Key Specifications / Features

Body/Bonnet: ASTM A216 WCB.
Wedge: ASTM A216 WCB+13CR.
Seat: ASTM A105+13CR.
Stem: 13CR.
Face to face dimension: 965 mm.
Valve standard: API 6D.
RF standard: ASME/ANSI B16.5.
Sealing pressure test: 22 BAR.
Shell pressure test: 30 BAR.
