Short Description

Model No.: VM 13 BV 07 Clicks: 7771

China Gate Valve manufacturer Valmax supplies Gate Valve, wedge made of ASTM A216 WCB+13CR, stem made by 13CR, featured with 711 mm Face to Face dimension.

Request a quote Share

Keywords: Gate Valves , Flanged .

Previous: Gate Valve, 600 LB, 30 Inch, Flange End, Bolted Bonnet
Next: Gate Valve, 150 LB, RF, 40 Inch, Bolted Bonnet, OS&Y

Gate Valve, 150 LB, RF, 36 * 30 Inch, ASME/ANSI B16.47 Key Specifications / Features

Body/Bonnet: ASTM A216 WCB.

Wedge: ASTM A216 WCB+13CR.

Seat: ASTM A105+13CR.

Stem: 13CR.

Face to face dimension: 711 mm.

Valve standard: API 600.

RF standard: ASME/ANSI B16.47.

Sealing pressure test: 22 BAR.

Shell pressure test: 30 BAR.

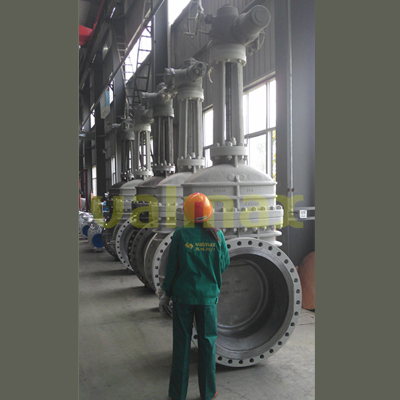

Gate Valve, 150 LB, RF, 36 * 30 Inch, ASME/ANSI B16.47

Gate Valve, 150 LB, RF, 36 * 30 Inch, ASME/ANSI B16.47 Key Specifications / Features
