Short Description

Model No.: VM 13 GV 08 Clicks: 4703

China Gate Valve manufacturer Valmax supplies Gate Valve, wedge made of ASTM A216 WCB+13CR, stem made by 13CR, featured with 356 mm Face to Face dimension.

Request a quote Share

Keywords: Gate Valves .

Previous: Gate Valve, 150 LB, RF, 36 * 30 Inch, ASME/ANSI B16.47
Next: Gate Valve, 900 LB, 8 Inch, by pass, OS&Y, Rising Stem

Gate Valve, 150 LB, RF, 40 Inch, Bolted Bonnet, OS&Y Key Specifications / Features

Body/Bonnet: ASTM A216 WCB.

Wedge: ASTM A216 WCB+13CR.

Seat: ASTM A105+13CR.

Stem: 13CR.

Face to face dimension: 356 mm.

Valve standard: API 600.

BW standard: ASME/ANSI B16.25.

Sealing pressure test: 22 BAR.

Shell pressure test: 30 BAR.

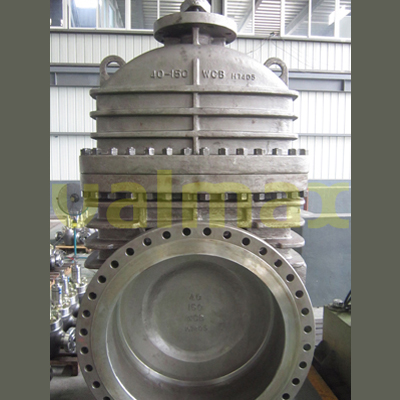

Gate Valve, 150 LB, RF, 40 Inch, Bolted Bonnet, OS&Y

Gate Valve, 150 LB, RF, 40 Inch, Bolted Bonnet, OS&Y Key Specifications / Features
