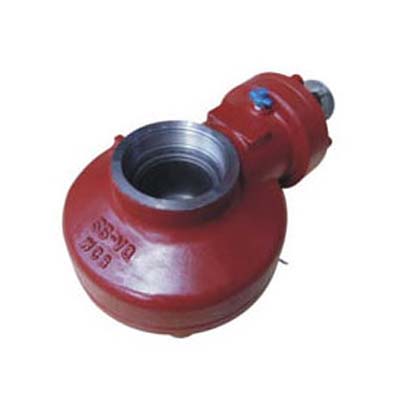

The gear actuator can be installed directly on the gate valve, globe valve and so on. By using Spiral bevel gears and thrust ball bearing, the gear actuator can run smoothly, and have high output torque,low noise and high efficience. It can avoid water & oil leakage as sealing glands are used at all the part passed. And the Protection grade can be IP65.The handwheel and the stem covers can be customized. For different valves and requirements, there are single stair gear actuator with motor flange,double stair gear actuator with motor flange and double stair gear actuator with handwheel etc.

型号Model			MY-VS10	MY-VS20	MY-V0	MY-V1	MY-V2	MY-V3	MY-V35	MY-V5	MY-V6
技术参数Tachnical-parameters
速比Ratio			2.3:1	2.35:1	3.1:1	3.6:1	4:1	4.1:1	5:1	6.3;1	7.1:1
最大推力		N	75500	113000	127000	141000	190000	288000	352000	521000	1110000
Max-thrust		Kgf	7690	11500	12900	14400	19400	29400	35900	52200	113000
最大转矩		N·m	216	363	589	932	1491	2296	3404	4500	7250
Max-torque		Kgf·m	22	37	60	95	152	234	347	459	740
最大阀杆直径 Max-stem dia.Mm			20	25	28	40	52	60	70	100	120
参考重量Weight Kg			10	12	21.5	28	35	50	95.5	190	288

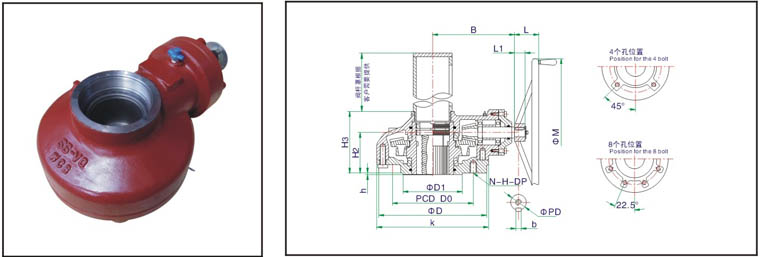

连接尺寸Connect ion-size
法兰号FLANGE			F10	F12	F14	F16	F(20)	F25	F30	F35	F40
法兰外圆(D)			125	150	175	210	250	300	350	415	475
连接孔中心 　PCD	D0		102	125	140	165	205	254	298	356	406
	N-H-DP		4-M10-15	4-M12-18	4-M16-24	8-M20-30	8-M16-24	8-M16-24	8-M20-30	8-M30-45	8-M36-54
凸面Convex(D1×h)			70 × 3	85 ×3	100 ×4	130 × 4	140 × 5	200 × 5	230 ×5	260 ×5	300 × 8
外型尺寸Appearance-size
H1			38	46	55	62	75	85	105	145	165
H2			65	70	70	75	90	100	140	155	210
H3			110	125	128	145	160	170	225	280	335
L			120	135	160	180	200	225	280	355	366
L2			215	230	260	320	340	365	420	515	565
手轮 hand wheel	PD		26	26	28	28	32	32	32	38	50
	(b)key		8 × 7	8 × 7	8 × 7	8 × 7	10 × 8	10 × 8	10 × 8	10 × 8	2-16 × 10
	L1		34	34	34	34	40	40	50	55	55
	M		250	250	400	450	500	600	650	700	800
