Multi-turn Gear Actuator, IP65, Motor Flange

Multi-turn Gear Actuator, IP65, Motor Flange
Short Description
 Model No.: VM 13 VP 04    Clicks: 3729

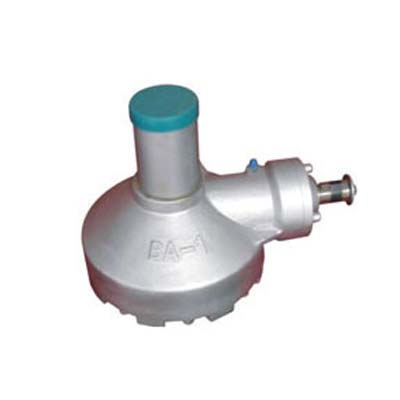

China Gear Actuator manufacturer Valmax supplies Gear Actuator which can avoid water & oil leakage, featured with IP65 Protection grade.

Multi-turn Gear Actuator, IP65, Motor Flange Key Specifications / Features

The gear actuator can be installed directly on the gate valve, globe valve and so on. By using Spiral bevel gears and thrust ball bearing, the gear actuator can run smoothly, and have high output torque, low noise and high efficience.lt can avoid water & oil leakage as sealing glands are used at all the part passed. And the Protection grade can be IP65.The handwheel and the stem covers can be customized. For different valves and requirements, there are single stair gear actuator with motor flange,double stair gear actuator with motor flange and double stair gear actuator with handwheel etc.

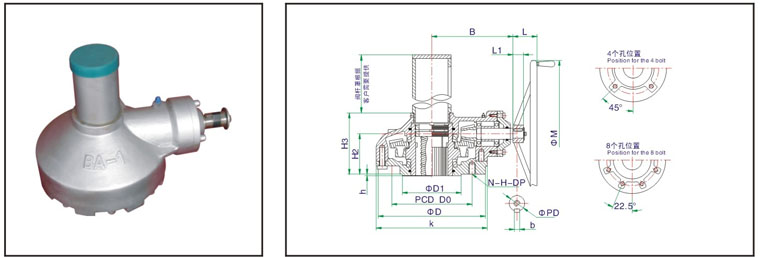

Multi-turn Gear Actuator Drawing
型号Model BA-000 BA-00 BA-0 BA-1 BA-2 BA-3 BAA-3
技术参数Technical-parameters
速比Ratio 2.35:1 3:1 3.6:1 4.5:1 5.2:1 6.3:1 23:1
最大转矩Max torque Nm 360 480 735 1470 2940 4000 6000
最大推力Max thrust N 43000 64000 98000 196000 340000 490000 630000
最大阀杆直径
Max stemdia.Mm
铜螺母Copper-nut
25 30 40 52 70 90 110
闸门Gate-valve DN 50 80-100 150-200 250-400 450-700 800-1000 1200
截止阀Globe valve DN 50 80 100-150 200-250 300-350 400-500 550-650
参考Weight Kg 15 22 28 54 110 198 320
连接尺寸 Connection-size
法兰外圆(D) 150 175 210 300 350 415 415
连接孔中心
PCD
DO 125 140 165 254 298 356 356
N-H-DP 4-M12-18 4-M16-24 4-M20-30 8-M16-24 8-M20-30 8-M30-45 8-M30-45
凸面Convex (D1xh) 85x3 100x4 130x5 200x5 230x5 260x5 260x5
外型尺寸Appearance-size
B 150 150 170 233 306 370 395
H2 80 80 85 97 142 160 178
H3 125 125 155 175 210 280 290
L 40 75 92 107 107 118 118
K 155 180 210 285 390 410 510
手轮
handwheel
PD 26 28 28 32 32 38 38
(b)key 8x7 8x7 8x7 10x8 10x8 10x8 10x8
L1 35 40 40 50 55 60 60
M 250 310 310 460 530 600 600
