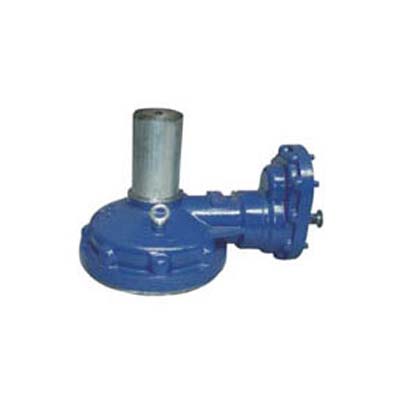

Multi-turn Gear Actuator, Motor Flange

Multi-turn Gear Actuator, Motor Flange
Short Description
 Model No.: VM 13 VP 06    Clicks: 2877
China Gear Actuator manufacturer Valmax supplies Gear Actuator which can avoid water & oil leakage, featured with IP65 Protection grade.
Keywords: Actuator , Valve Actuators .

Multi-turn Gear Actuator, Motor Flange Key Specifications / Features

The gear actuator can be installed directly on the gate valve, globe valve and so on. By using Spiral bevel gears and thrust ball bearing, the gear actuator can run smoothly, and have high output torque,low noise and high efficience. It can avoid water & oil leakage as sealing glands are used at all the part passed. And the Protection grade can be IP65.The handwheel and the stem covers can be customized. For different valves and requirements, there are single stair gear actuator with motor flange,double stair gear actuator with motor flange and double stair gear actuator with handwheel etc.

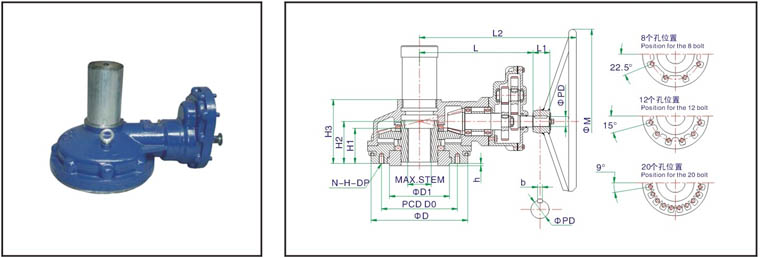

multi-turn-gear-actuator-motor-flange-drawing
型号Model 2CK2-1S 2CK3-1S 2CK5-1S 2CK8-1S 2CK10-S 2CKl5-1S 2CK18-1S
技术参数Tachnical—parameters
 速比Ratio 13.6:1 17.6:1 22:1 42.5:1 48:1 94.4:1 115.5:1
 最大推力 N 290000 400000 500000 800000 1100000 1250000 1500000
 Max-thrust Kgf 29592 408163 510204 81633 112244 127551 153061
 最大转矩 N·m 2350 3200 5600 8500 13500 18500 26000
 Max-torque Kgf·m 240 327 398 714 1020 1582 2245
 最大阀杆直径
 Max-stem dia.Mm
70 80 95 110 130 150 160
 参考重量Weight Kg 52 70 115 256 316 470 645
连接尺寸Connect ion-size
 法兰号FLANGE (F20) F25 F30 F35 F40 F48 F60
 法兰外圆D   250 300 350 415 475 560 686
 连接孔中心 D0 205 254 298 356 406 483 603
 PCD N-H-DP 8-M16-24 8-M16-24 8-M20-35 8-M30-45 8-M36-54 12-M36-54 20-M36-54
 凸面Convex(D1×h) 140 × 5 200 × 5 2300 ×5 260 × 5 300 × 8 370 ×8 470 ×8
外型尺寸Appearance-size
    H1 89 97 120 152 176 188 230
    H2 120 130 163 225 290 320 335
    H3 144 156 188 250 320 350 365
    L 305 330 390 480 500 550 610
    L2 400 470 530 640 660 750 810
  PD 32 32 32 35 35 45 45
手轮   (b)key 8 × 7 8 × 7 8 × 7 10 × 8 10 × 8 1 2 × 8 12 × 8
hand wheel L1 38 38 38 38 38 44 44
M 500 550 600 700 750 800 850
