Short Description
Model No.: VM 13 VP 03 Clicks: 5263

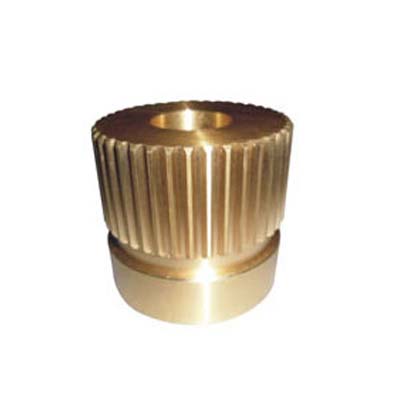

China Stem Nut manufacturer Valmax supplies BA Stem Nut, made of ZHAL66-6-3-2 aluminum brass, 45#, QT450 or D-2 and so on. Users can select by themselves.
Users can process the connecting hole size of the stem nut according to this graph. When processing hole Фd, the coaxial grades of the base A should be machined according to GB1184-80.8.
Stem Nut material has ZHAL66-6-3-2 aluminum brass, 45#, QT450, D-2 and so on. Users can select.
|
|
BA 000 |
BA 00 |
BA 0 |
BA 1 |
BA 2 |
BA 3 |
BAA 3 |
|
d |
10 |
15 |
16 |
25 |
35 |
45 |
60 |
|
D3 |
50 |
57 |
63 |
74 |
94 |
108 |
146 |
|
D2 |
50 |
57 |
65 |
80 |
100 |
118 |
152 |
|
L4 |
12 |
22 |
18 |
22 |
36 |
|
|
|
L3 |
25 |
25 |
37 |
46 |
55 |
80 |
108 |
|
L2 |
46 |
55 |
58 |
70 |
100 |
120 |
145 |
|
D4 |
42 |
50 |
57 |
68 |
84 |
|
|
