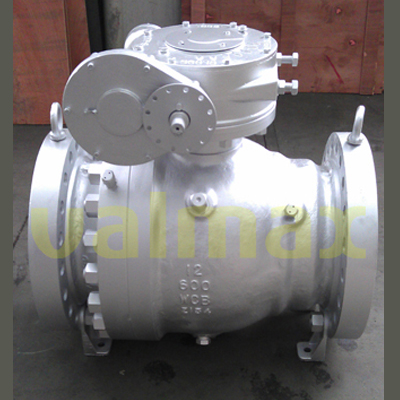

Trunnion Ball Valve, 600 LB, 12 Inch, ASTM A216 WCB

Valmax > Valves > Ball Valves > Trunnion Ball Valve, 600 LB, 12 Inch, ASTM A216 WCB

Short Description

Model No.: VM 13 BV 04 Clicks: 2624

China Ball Valve manufacturer Valmax supplies Trunnion Ball Valve,seat made of DEVLON, featured with API 6D Valve standard, 838 mm Face to Face dimension.

Request a quote Share

Keywords: Ball Valves , API 6D Ball Valves .

Previous: Trunnion Ball Valve, 900 LB, 36 Inch, ASTM A216 WCB
Next: Trunnion Ball Valve, Ball Valve, 1500 LB, 18 Inch

Trunnion Ball Valve, 600 LB, 12 Inch, ASTM A216 WCB Key Specifications / Features

Body/Bonnet: ASTM A216 WCB.

Ball: ASTM A182 A105+ENP.

Seat: DEVLON.

Stem: ASTM A182 F6a.

Face to Face dimension: 838 mm.

Valve standard: API 6D.

Flange standard: ASME B16.5.

Sealing pressure test: 112 BAR.

Shell pressure test: 153 BAR.

Trunnion Ball Valve, 600 LB, 12 Inch, ASTM A216 WCB

Trunnion Ball Valve, 600 LB, 12 Inch, ASTM A216 WCB Key Specifications / Features
