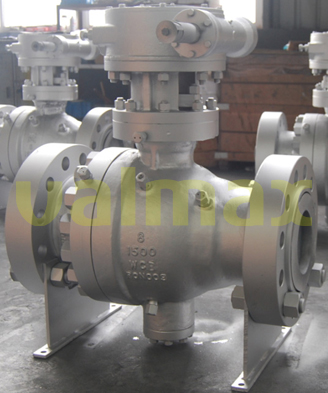

Trunnion Ball Valve, Ball Valve, 1500 LB, 8 Inch

Valmax > Valves > Ball Valves > Trunnion Ball Valve, Ball Valve, 1500 LB, 8 Inch

Short Description

Model No.: VM 13 BV 08 Clicks: 3244

China Ball Valve manufacturer Valmax supplies Trunnion Ball Valve, seat made of DEVLON, featured with API 6D Valve standard, 832 mm Face to Face dimension.

Request a quote Share

Keywords: Ball Valves , API 6D Ball Valves .

Previous: Trunnion Ball Valve, 600 LB, 16 Inch, ASTM A216 WCB
Next: Floating Ball Valve,150 LB, 4 Inch, ASTM A216 WCB

Trunnion Ball Valve, Ball Valve, 1500 LB, 8 Inch Key Specifications / Features

Body/Bonnet: ASTM A216 WCB + ENP.

Ball: ASTM A182 F316.

Seat: DEVLON.

Stem: ASTM A182 F316.

Face to Face dimension: 832 mm.

Valve standard: API 6D.

Flange standard: ASME B16.5.

Sealing pressure test: 281 BAR.

Shell pressure test: 383 BAR.

Trunnion Ball Valve, Ball Valve, 1500 LB, 8 Inch

Trunnion Ball Valve, Ball Valve, 1500 LB, 8 Inch Key Specifications / Features
